Isle of Grain

MEDWAY, KENT

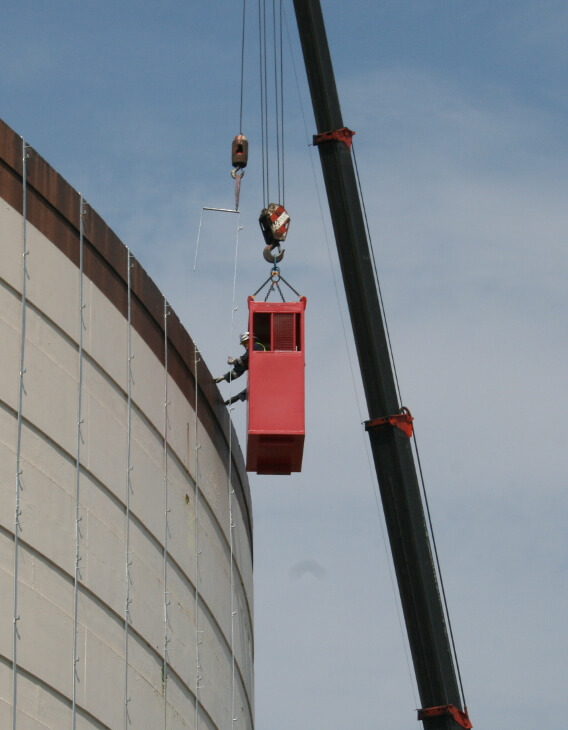

A 50,000 m³ LNG storage tank surrounded by a reinforced concrete bund wall providing secondary containment.

  • SCOPE OF WORK

    ISLE OF GRAIN

    • Design and operational solution for the replacement of the existing restrainment system to the outside of the bund wall.
    • Design of special anchors.

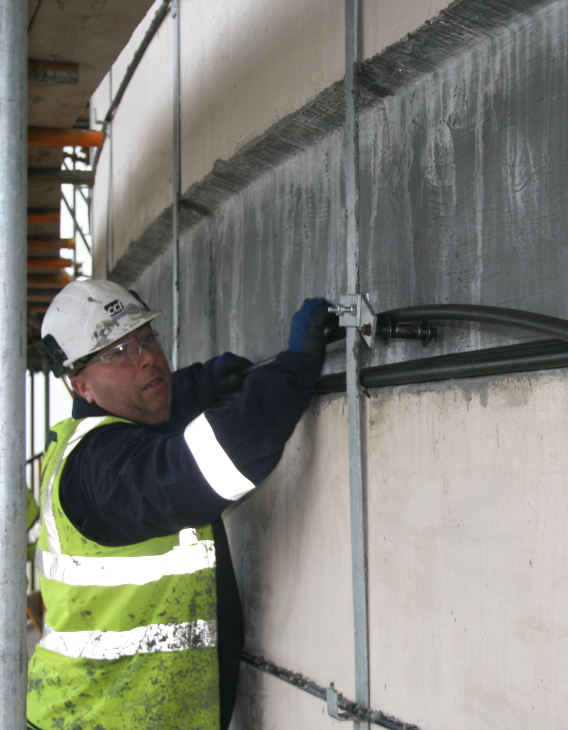

    • Safe detensioning of existing wire from the bund wall using a post-tensioned assisted strap restrainment system.

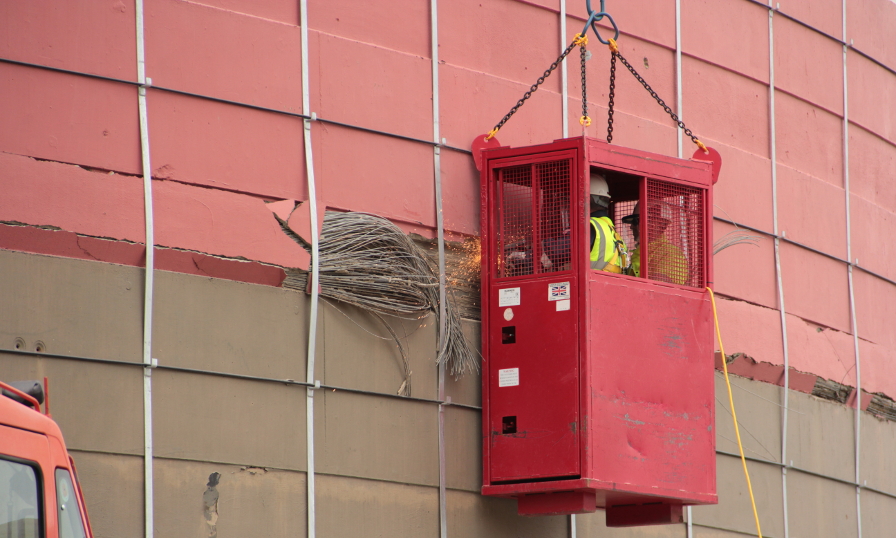

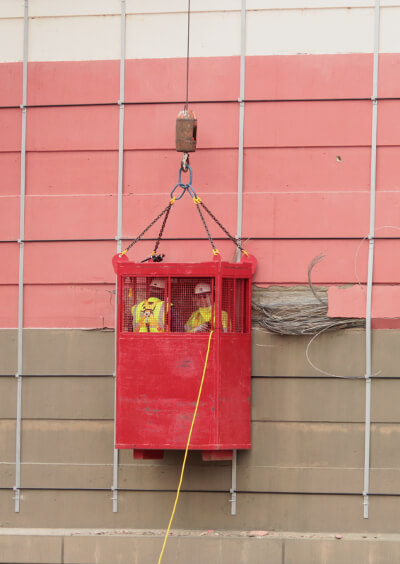

    • Removal of existing wire system.

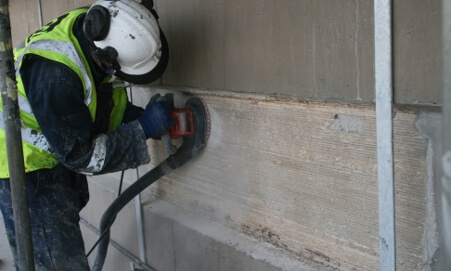

    • Concrete repair and protection of horizontal rebates.
    • Installation of 20 unbonded PT strands with UTS of 279 kN, in hdpe sheaths, per recess.
    • Installation and stressing of special anchors on each band of strands to resist concentrated forces for the height of the bund wall.
    • Application of weatherproof coating.
  •

  • GALLERY

    ISLE OF GRAIN

  • Image Thumbnail
    Image Thumbnail
  • Image Thumbnail
  • Image Thumbnail

BENEFITS

CCL delivered the following benefits:

  • security

    Safety

    Safe replacement of restrainment system to 50,000 m³ LNG tank.

  • lock

    Security

    Application of a total of 5,575 tonne of restrainment stress.

  • domain

    Bespoke Solution

    Design of bespoke anchors capable of restraining bursting forces of 223 tonne per anchor.

  • layers

    Aesthetic Finish

    Aesthetic weatherproof coating to bund wall.

  • check

    Reassurance

    CCL operations director on site for duration of project.
