APPLE STORE

LIVERPOOL

New tenant Apple required structural modifications to double the height of its new store at the Liverpool ONE shopping, residential and leisure complex.

  • SCOPE OF WORK

    APPLE STORE

    • Analysis of new loadings.
    • Design of CFRP strengthening solution to provide additional capacity to sections of beams and beam /column connections.
    • Location of existing post-tensioning tendons.

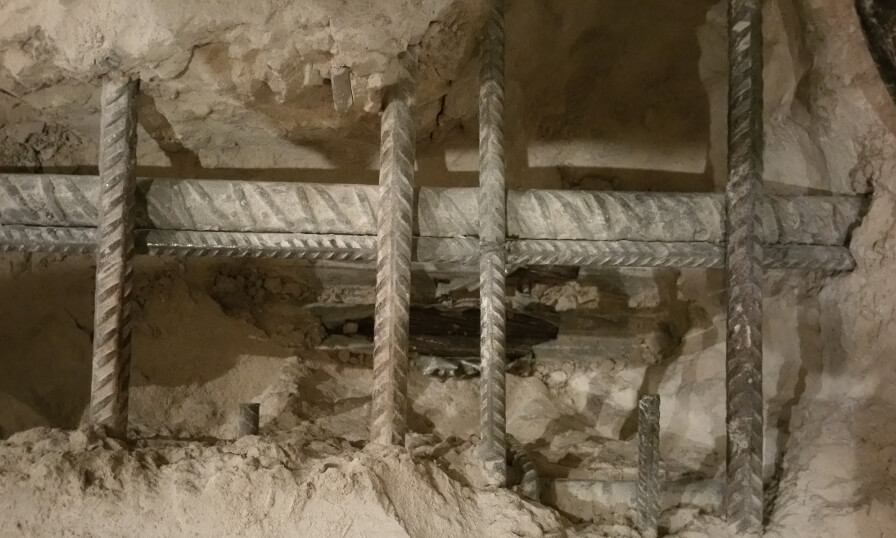

    • Removal of concrete at tendon locations and removal of duct from around local strands.
    • Installation of resin grout anchors around exposed strand.
    • Cutting of strand.

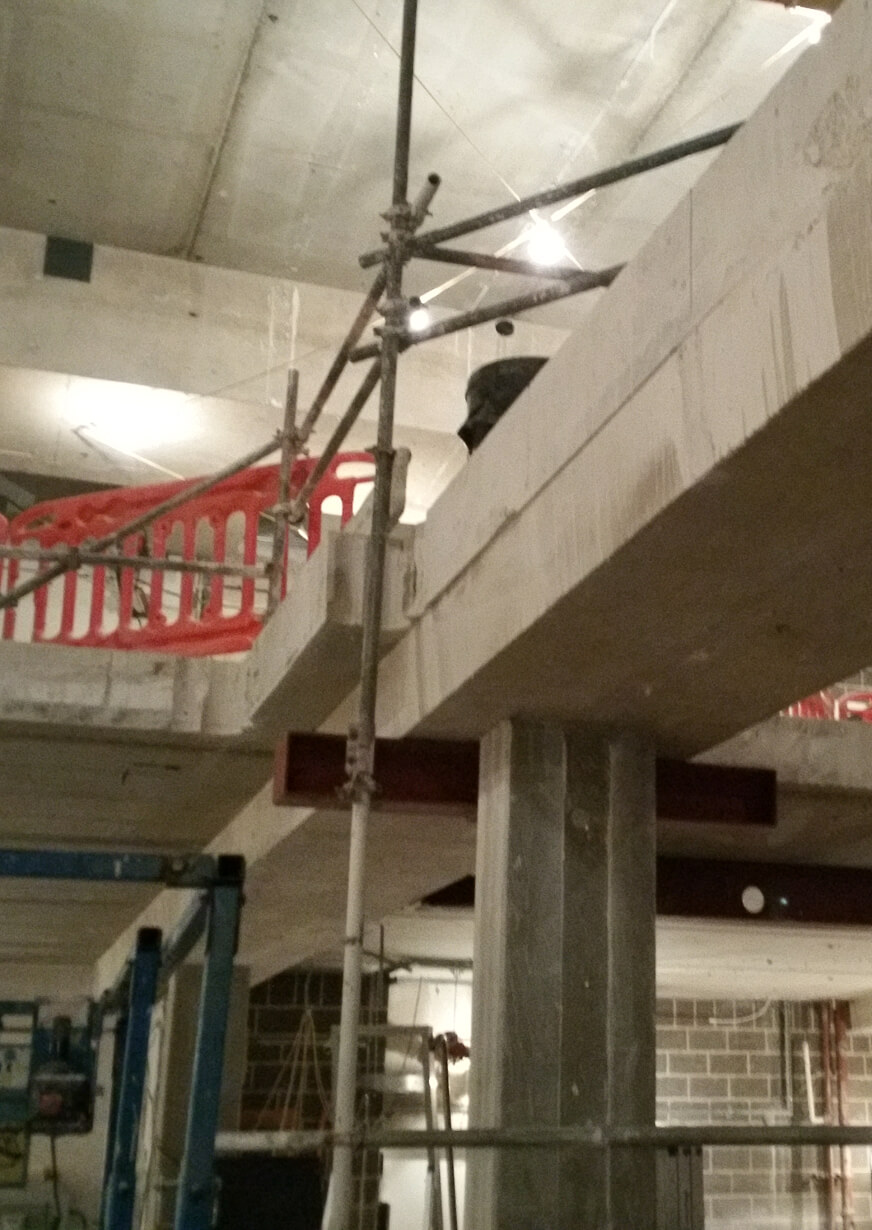

    • Sequential controlled demolition of post-tensioned concrete beams.

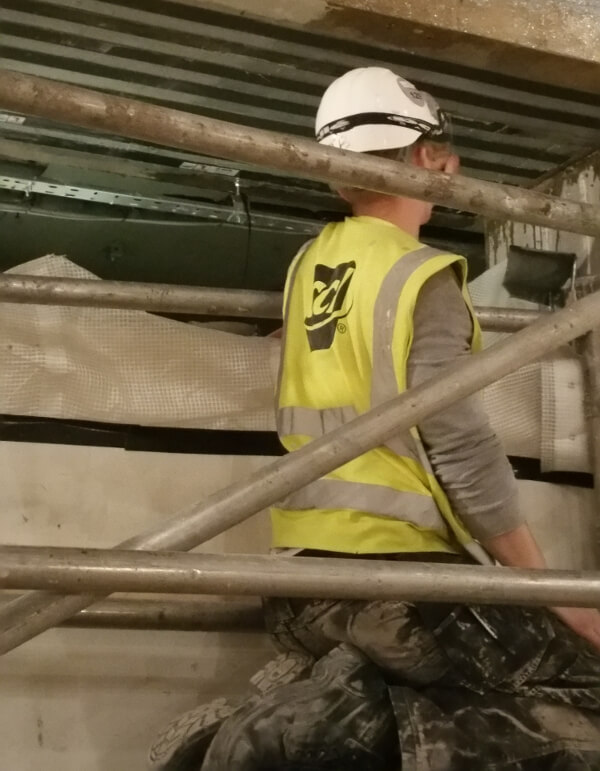

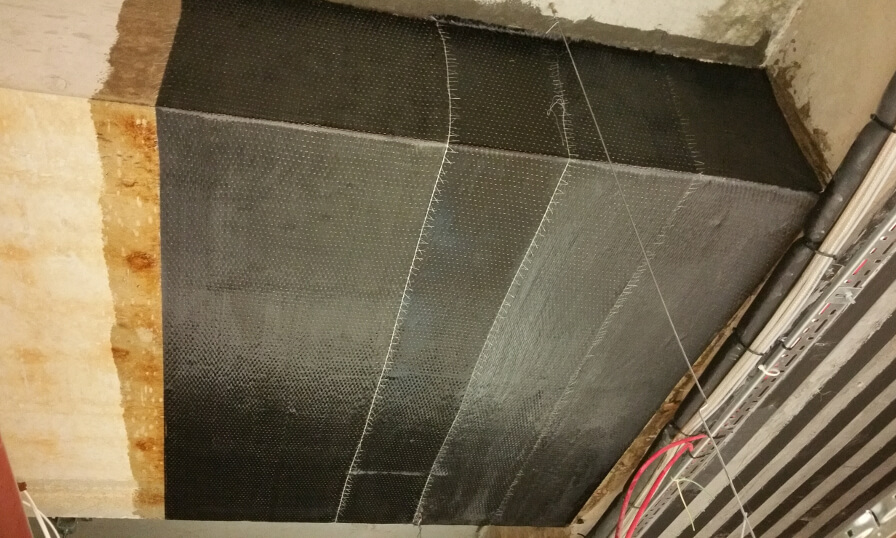

    • CFRP wrapped around beams to accommodate increased shear loads.

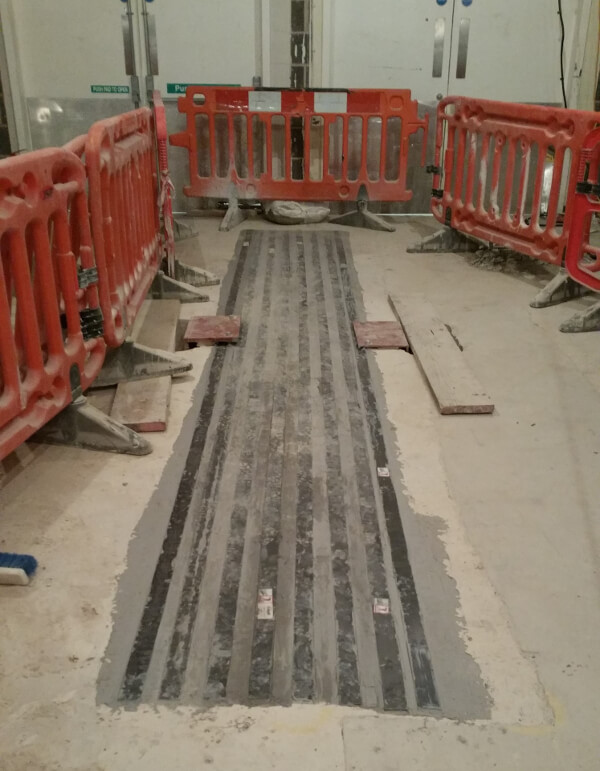

    • Installation of additional CFRP strips to enhance longitudinal bending strength.
  •

  • GALLERY

    APPLE STORE

  • Image Thumbnail
    Image Thumbnail
  • Image Thumbnail
  • Image Thumbnail

BENEFITS

CCL delivered the following benefits:

  • vertical_align_top

    Extra Space

    Removal of part of the first floor doubled the height of part of the unit.

  • flip_to_front

    Flexibility

    Modifications to existing post-tensioned slabs created a dramatic open entrance area.

  • view_agenda

    Additional Capacity

    CFRP provided additional capacity to accommodate new loadings.

  • domain

    Specialist Solution

    Achieved client’s vision for the retail unit.
