CHISWICK PARK

• SCOPE OF WORK

  CHISWICK PARK

  • In-situ post-tensioned slabs with precast edge beams combined with precast columns simplified buildability.
  • Hybrid concrete construction resulted in high quality finishes, flexibility and reduced costs.
  • Combination of precast and post-tensioned concrete moved part of the site work to the factory accelerating the construction program.

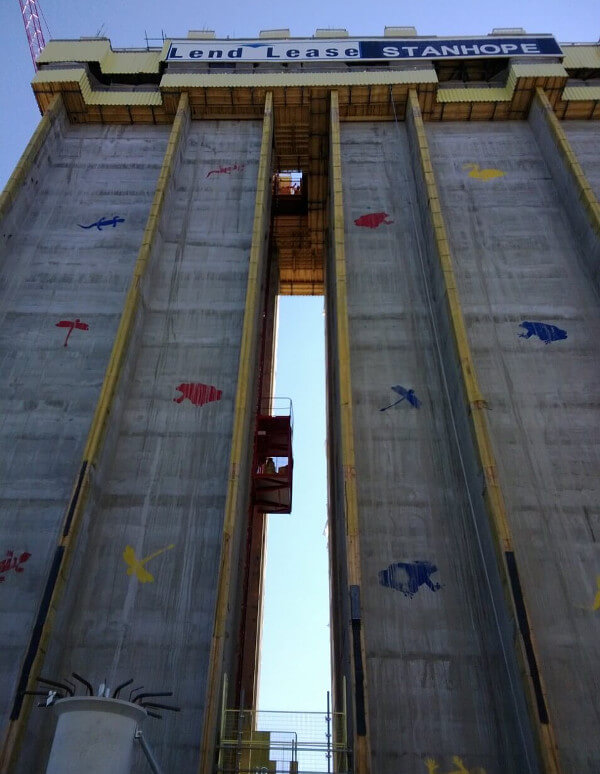

  • Central stability stair core provided free lateral movement to eliminate need for anti-crack reinforcement or temporary movement joints.

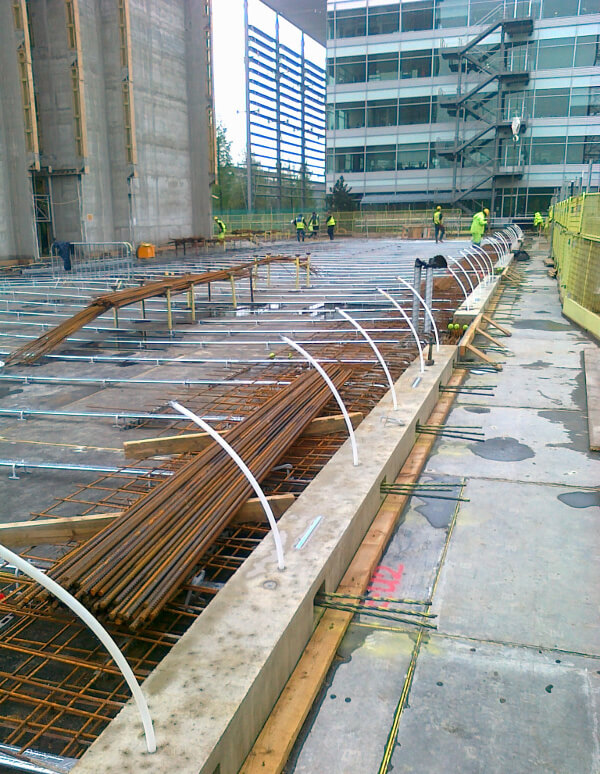

  • Repetitive layout using precast columns and edge beams which acted as permanent formwork also reduced costs and minimized construction time.

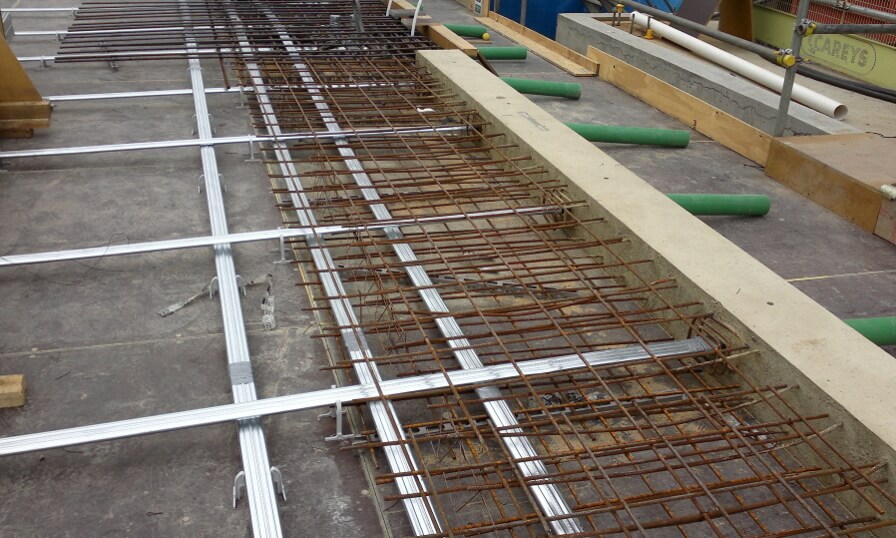

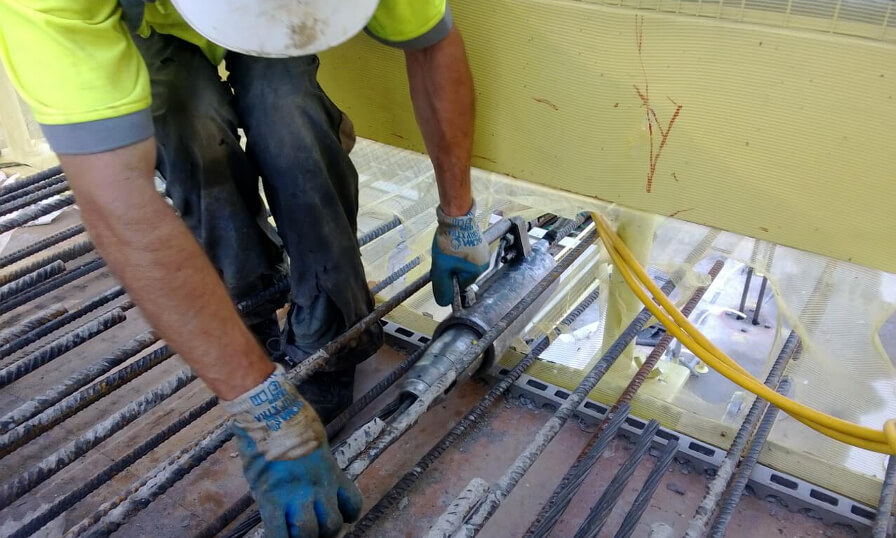

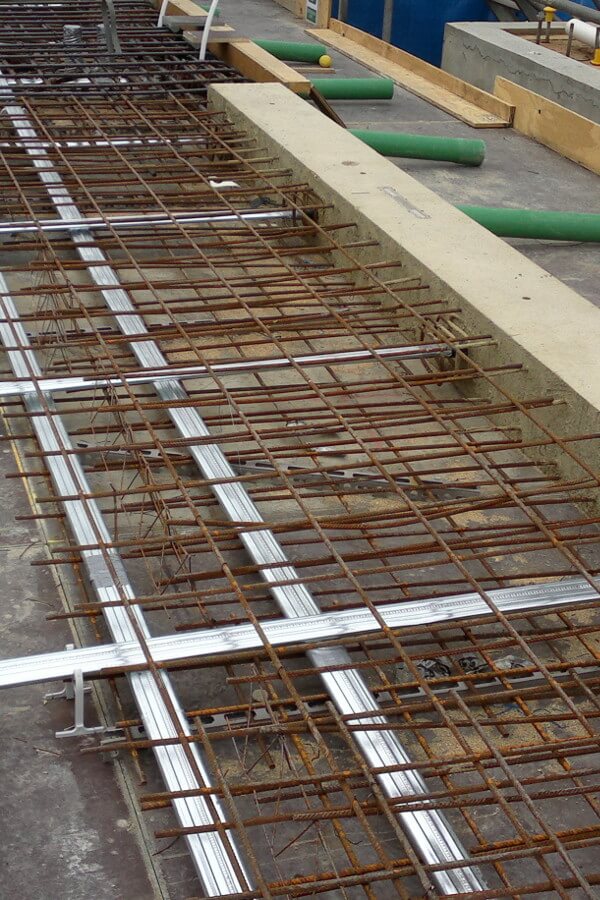

  • Design and installation of post-tensioned floor plates over 10 levels.
  • Design of reinforced concrete core slabs and precast edge units.
•
•

• GALLERY

  CHISWICK PARK

• show_chart

  Crack Control

  Central core eliminated the need for anti-crack reinforcement.

• layers

  High Quality Finish

  PPT and precast elements provided an outstanding finish.

• schedule

  Faster Construction

  Slashed construction time using precast and post-tensioned concrete.

• public

  Less CO₂

  Post-tensioning reduced the concrete required and lowered CO₂ emissions.

• view_quilt

  Improved Buildability

  Combining specialist techniques improved the building design.

• check

  Cost Savings

  Precast edge beams acting as permanent formwork reduced costs.
