CLATTERBRIDGE CANCER CENTRE

LIVERPOOL

An 11-storey hospital with accommodation arranged floor-by-floor by cancer type and with heavy linear accelerators in the basement.

  • SCOPE OF WORK

    CLATTERBRIDGE CANCER CENTRE

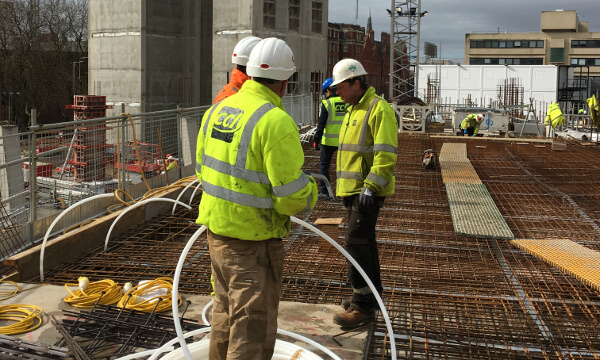

    • Detailed design of post-tensioned slabs tailored to suit specific loading, deflection and vibration criteria.

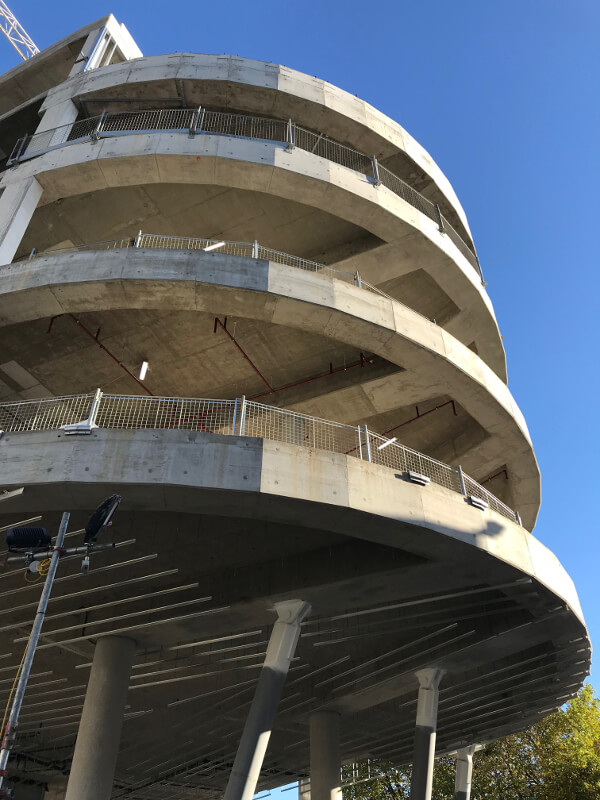

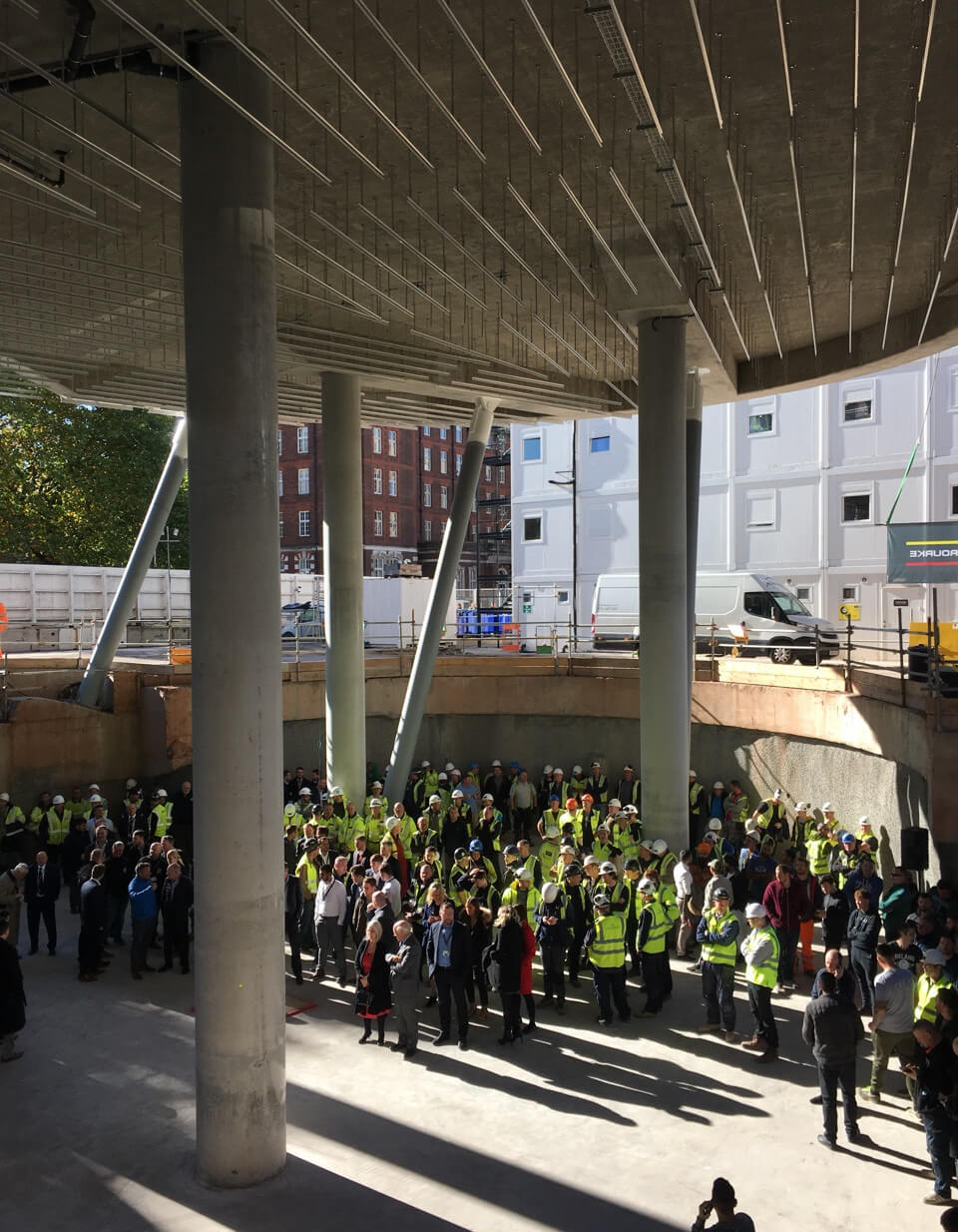

    • A curved prow end projecting 8 metres from the main structure, utilising inclined columns and cantilevering downstand beams.
    • Reinforcement detailing incorporated a 65 mm surface recess at the slab edge and roof level slab laid to falls.
  •

  • GALLERY

    CLATTERBRIDGE CANCER CENTRE

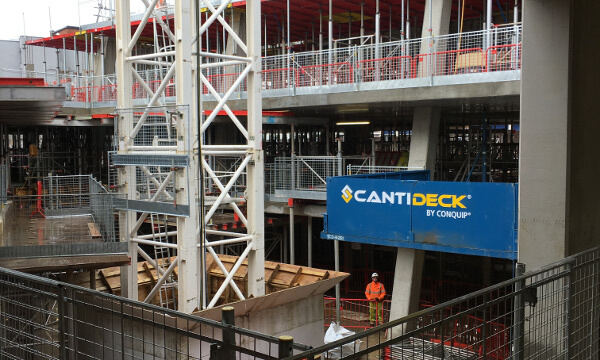

  • Image Thumbnail
  • Image Thumbnail
    Image Thumbnail
  • Image Thumbnail

BENEFITS

CCL delivered the following benefits:

  • call_missed

    Deflection Control

    Utilisation of post-tensioning substantially reduced anticipated long term slab deflections.

  • blur_linear

    Vibration Resistance

    Vibration analyses ensured response factors were carefully controlled in sensitive areas.

  • schedule

    Faster

    Post-tensioned slabs allowed a significantly condensed construction programme.

  • trending_down

    Less Steel

    Reduced quantity of traditional reinforcement, saving installation time and cost.

  • domain

    Specialist Design

    Varying loads in different locations required a bespoke design solution.

  • invert_colors

    Water Management

    Roof slabs laid to falls to facilitate drainage of rainwater.
