DIAMOND

SHEFFIELD

The ‘Diamond’ is Sheffield University’s largest investment in learning and teaching designed to inspire the next generation of engineers.

  • SCOPE OF WORK

    DIAMOND

    • Design and installation of post-tensioned slabs at levels 1-4 and roof, replacing original proposal for voided slabs.
    • Reduced slab depth from 500 mm to 350 mm across most floor spaces.
    • Increased ceiling void facilitating distribution of services.
    • Slabs designed to carry heavy loading for current occupancy levels (including a working jet engine).
    • Future-proofing load carrying capacity to allow for additional equipment to be added.

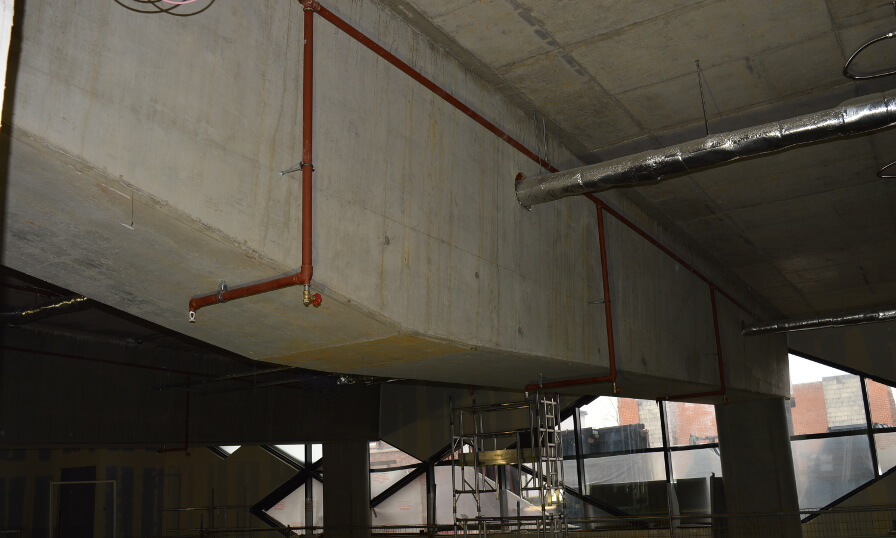

    • Design and installation of transfer beams to enable 15 m column-free lecture theatre.
    • Transfer beams designed to incorporate architect's aesthetical requirements - minimised cross-sectional dimensions with an elevation to mimic the bending moment diagram.
  •

  • GALLERY

    DIAMOND

  • Image Thumbnail
  • Image Thumbnail
    Image Thumbnail
  • Image Thumbnail

BENEFITS

CCL delivered the following benefits:

  • get_app

    Reduced Slab Depth

    Reduced overall slab depth from 500 mm to 350 mm.

  • call_missed

    Deflection Control

    Minimised the risk of damage to glazing or costly aluminium cladding.

  • schedule

    Faster Construction

    CCL's specialised solution significantly sped up construction.

  • domain

    Specialist Solution

    Achieved design feature aligned to the architect’s vision.

  • vertical_align_top

    Increased Ceiling Void

    Increased ceiling void to improve coordination of building services installation.

  • check

    Reduced Cost

    CCL helped save the University a huge £750,000 in total.
