St George Wharf Tower

LONDON

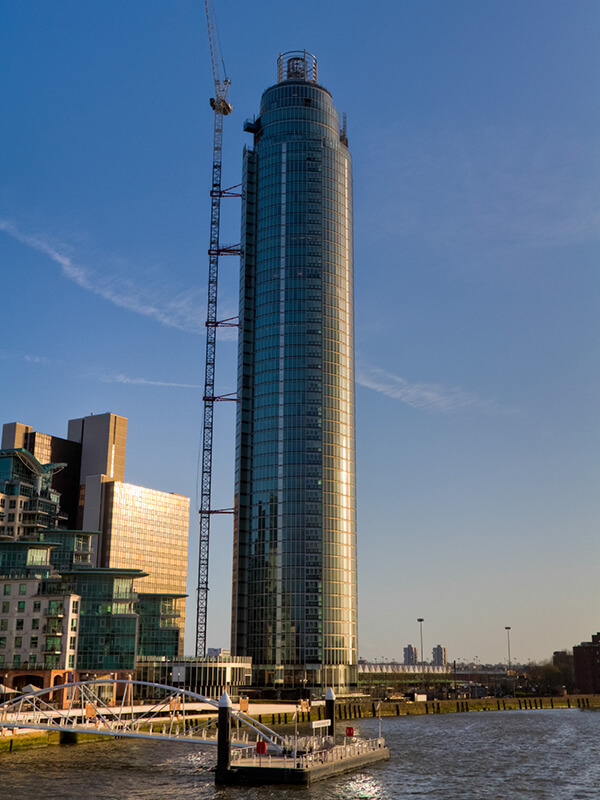

At 181 metres tall, this slender 52-storey tower is the tallest residential skyscraper in the UK.

  • SCOPE OF WORK

    St George Wharf Tower

    • Extensive value engineering during scheme development to facilitate reductions in the cost of the superstructure.
    • Detailed assessment of slab edge deflections to provide a solution compliant with the cladding requirements.
    • Analysis of construction loads to refine temporary works propping requirements.

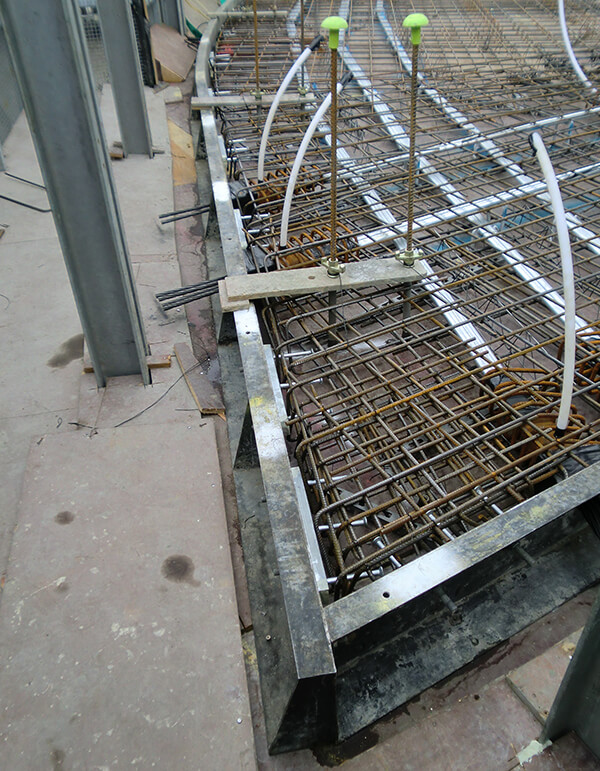

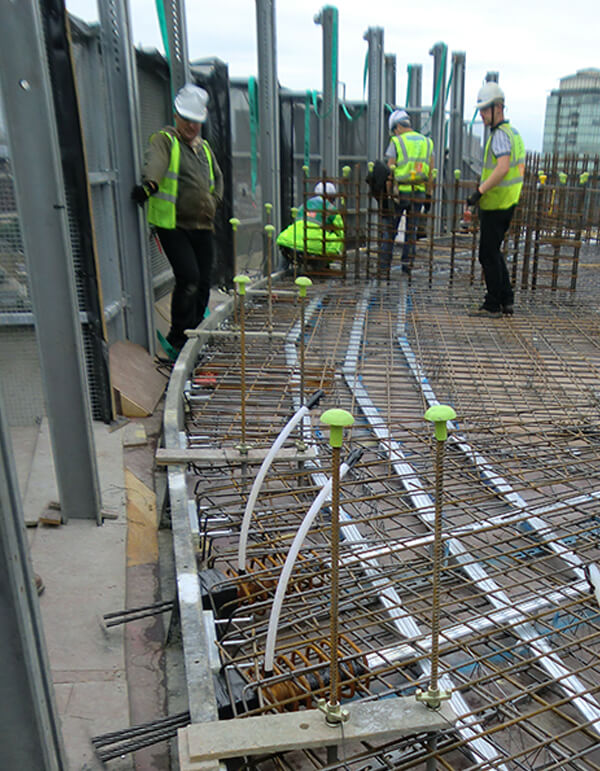

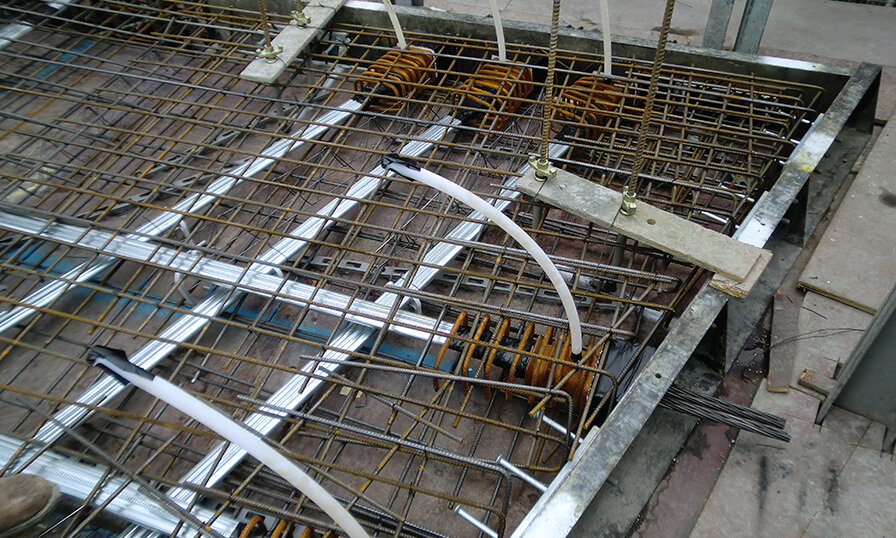

    • Detailed design of a CCL hybrid PT/RC slab solution at levels 3 to 45.
  •

  • GALLERY

    St George Wharf Tower

  • Image Thumbnail
    Image Thumbnail
  • Image Thumbnail
  • Image Thumbnail

BENEFITS

CCL delivered the following benefits:

  • domain

    Specialist Design

    A specialist design was required to overcome unusual geometry.

  • call_missed

    Deflection Control

    Deflection control to manage requirements of high spec cladding.

  • view_agenda

    Stronger Structure

    Support for penthouse apartment pools (transfer ring beams).

  • show_chart

    Crack Control

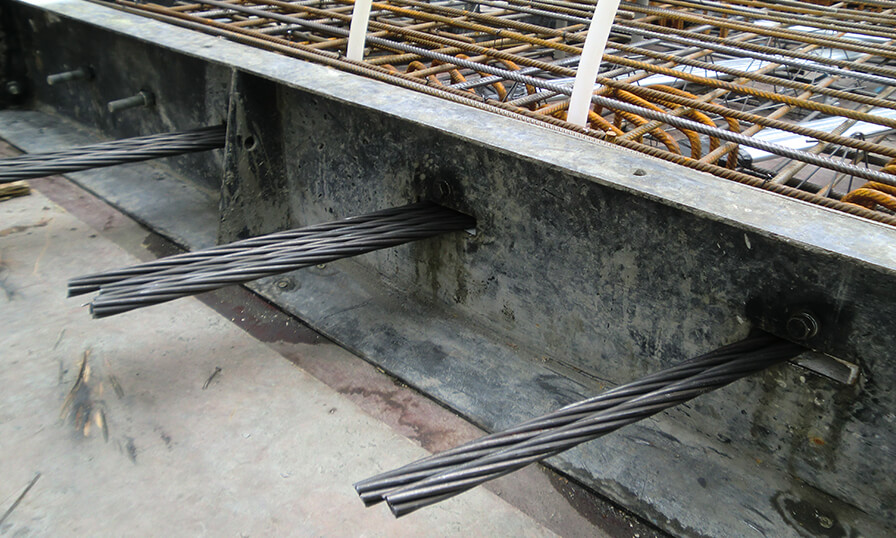

    Post-tensioned slabs provided deflection and crack control.

  • vertical_align_bottom

    Material Reduction

    Reduction in slab thickness (275 mm to 250 mm).

  • schedule

    Faster Construction

    Accelerated construction schedule. Removed need for 11 simultaneous levels of back propping.
