Strata

LONDON

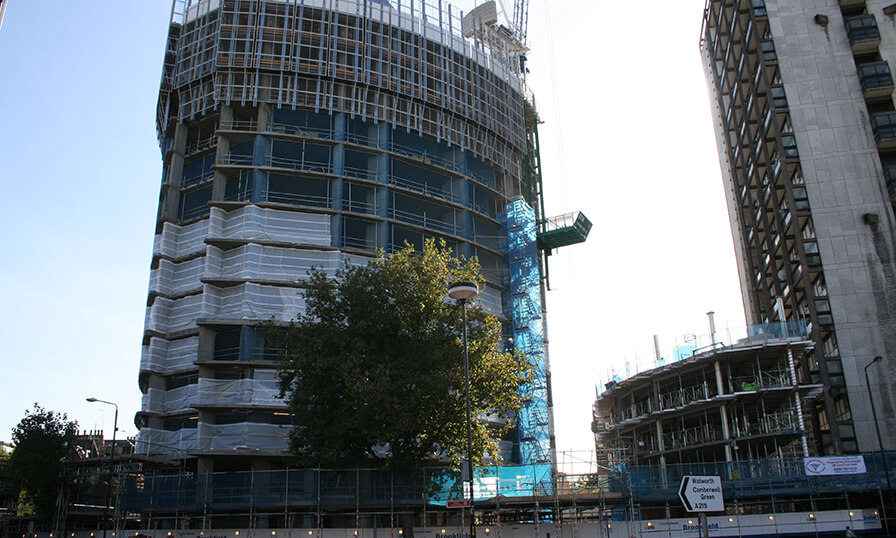

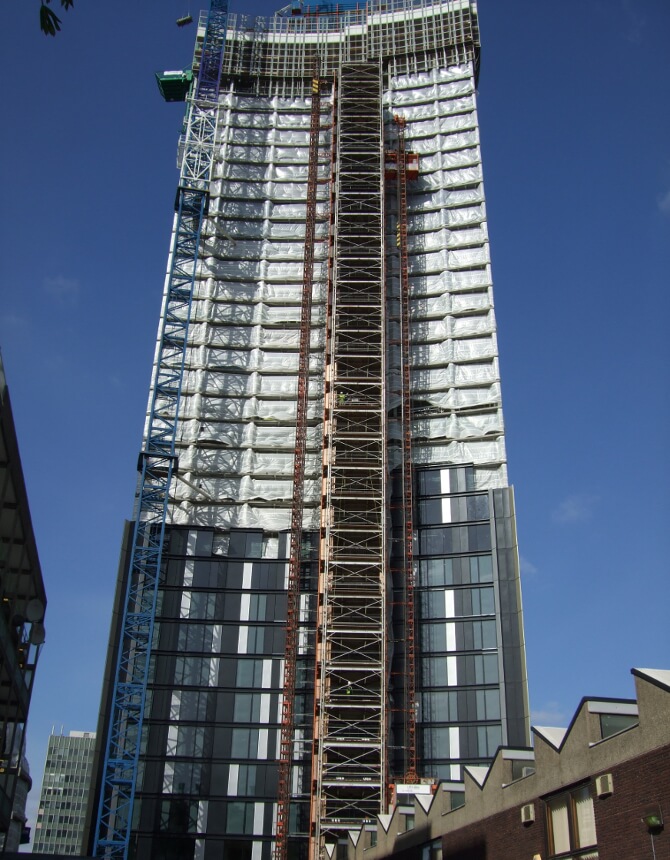

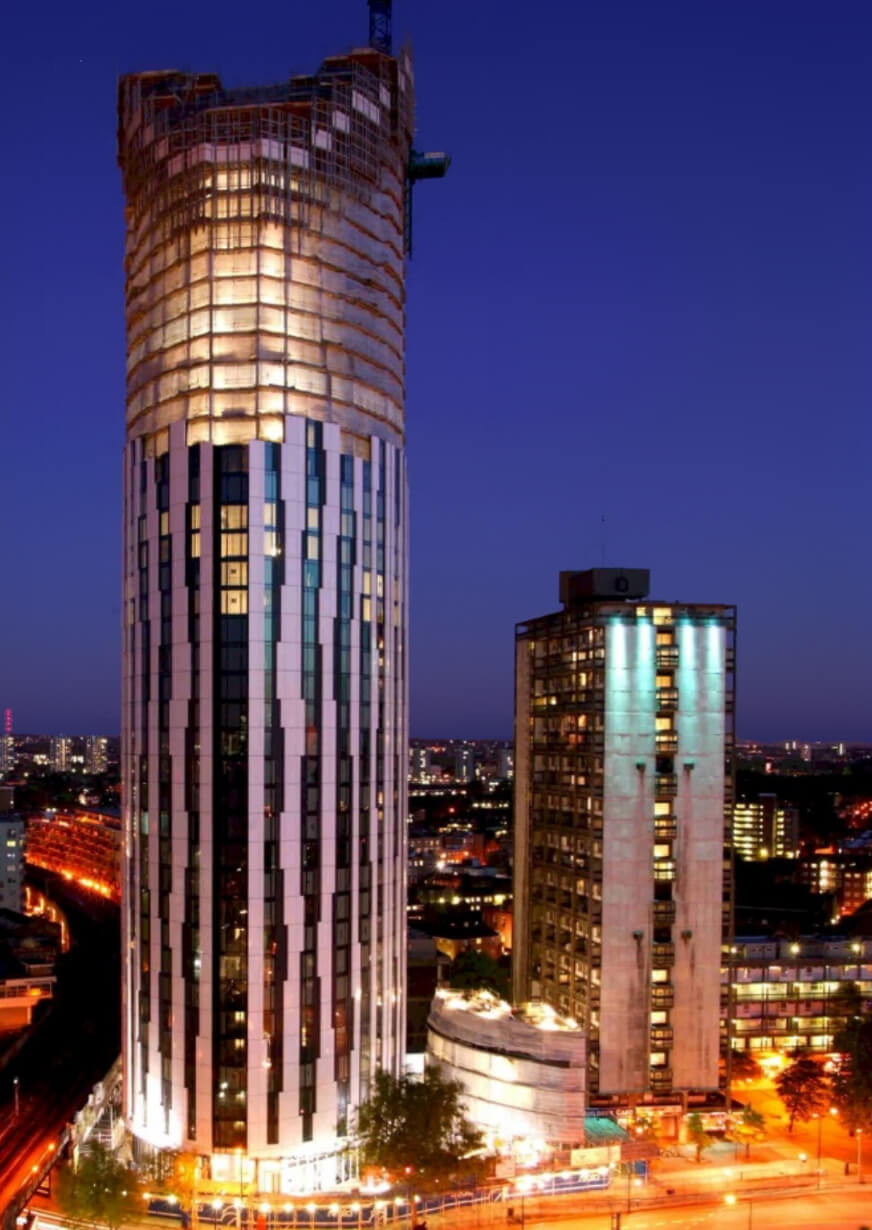

A 43-storey residential development which was a focal point of the Elephant and Castle redevelopment in London.

  • SCOPE OF WORK

    STRATA

    • Long spans achieved despite complex geometry - structural depth of 200 mm on spans up to nine metres.
    • Stage-stressed transfer beam controlled deflections while construction continued above.
    • Elimination of downstand beams.

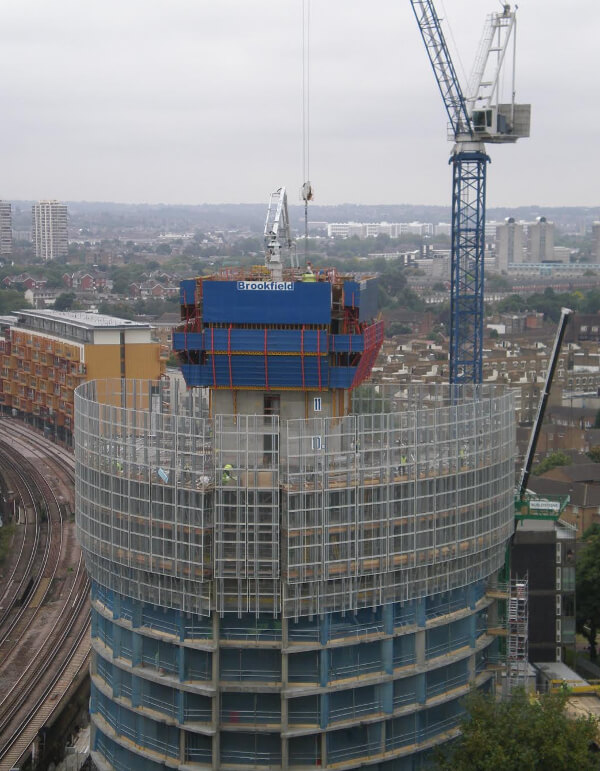

    • Rapid construction schedule of approximately one floor per week.
    • Option for an additional storey, whilst maintaining height of original structure.
    • Slab depth reduced by 50-75 mm per floor, equivalent to a 3 m reduction in the overall building height.
    • Approx. 2000 m³ of concrete saved within the superstructure (15% cost reduction).
    • Reduced depth of piled foundations due to savings in dead weight.
    • Minimisation and recycling of waste.
  •

  • GALLERY

    STRATA

  • Image Thumbnail
    Image Thumbnail
  • Image Thumbnail
  • Image Thumbnail

BENEFITS

CCL delivered the following benefits:

  • swap_horiz

    Longer Spans

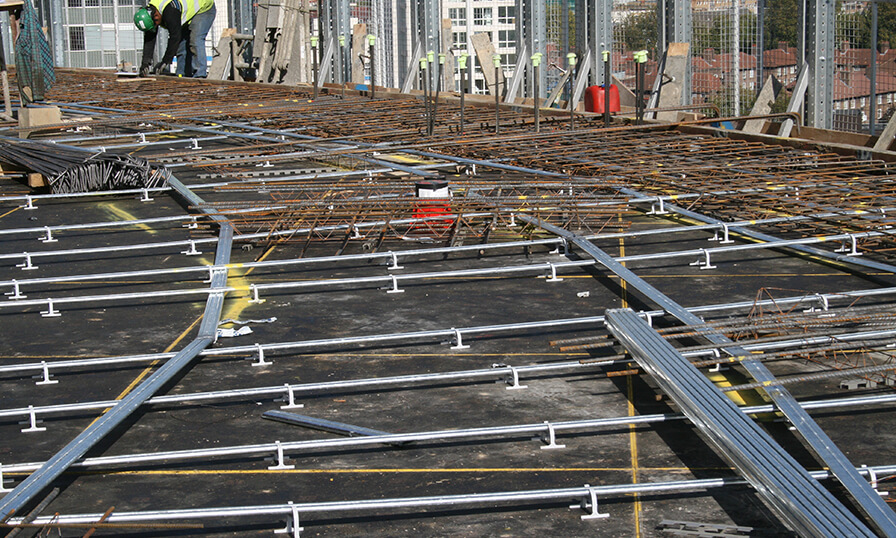

    Post-tensioning achieved longer, thinner spans.

  • show_chart

    Crack Control

    Post-tensioned slabs provided deflection and crack control.

  • schedule

    Faster

    Each post-tensioned floor took just one week to install.

  • public

    Less CO2

    Post-tensioning reduced the volume of concrete required by 2000 m³.

  • vertical_align_top

    Extra Space

    Post-tensioning resulted in a whole extra floor of usable space.

  • check

    Cheaper

    The reduction in concrete and build time resulted in significant savings.
